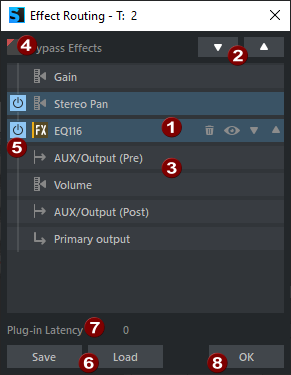

When you move the mouse over an element, controls for that element become visible:

Deletes the entry from the effect chain.

Displays the user interface of the effect.For AUX outputs, the AUX Send Routing dialog is displayed, and for pan, the corresponding Panning dialog.

The arrow keys move the element in the chain.

Use the arrow keys to move selected effects in the chain.

The entries AUX (Direct/Pre/Post) indicate the points in the effects chain where the signal for the AUX send busses is tapped. By default, Pre and Post are located directly before and after the volume, as with physical mixing consoles, but they can also be moved to a different position in the chain, just like the effects.

You also define the positions for additional track output routings.

Notes:

• Exception: Object AUX sends always remain in the last position.

• The AUX/Output (Direct) entry is not displayed until a corresponding routing has been created.

Bypass Effects: The effects of the chain can be deactivated together here.

On/Off: This allows each effect to be turned off individually.

Save/Load: Use these buttons to save and load the settings of the complete effect chain. These settings can be accessed via the menu on the FX button at various points in the program.

Plug-in latency: Sequoia works with latency compensation for all plug-ins. The plug-ins report their latency to Sequoia, which converts this value into a time offset for the audio material. Here you can read the latency reported by the plug-in.
