Monitoring Section

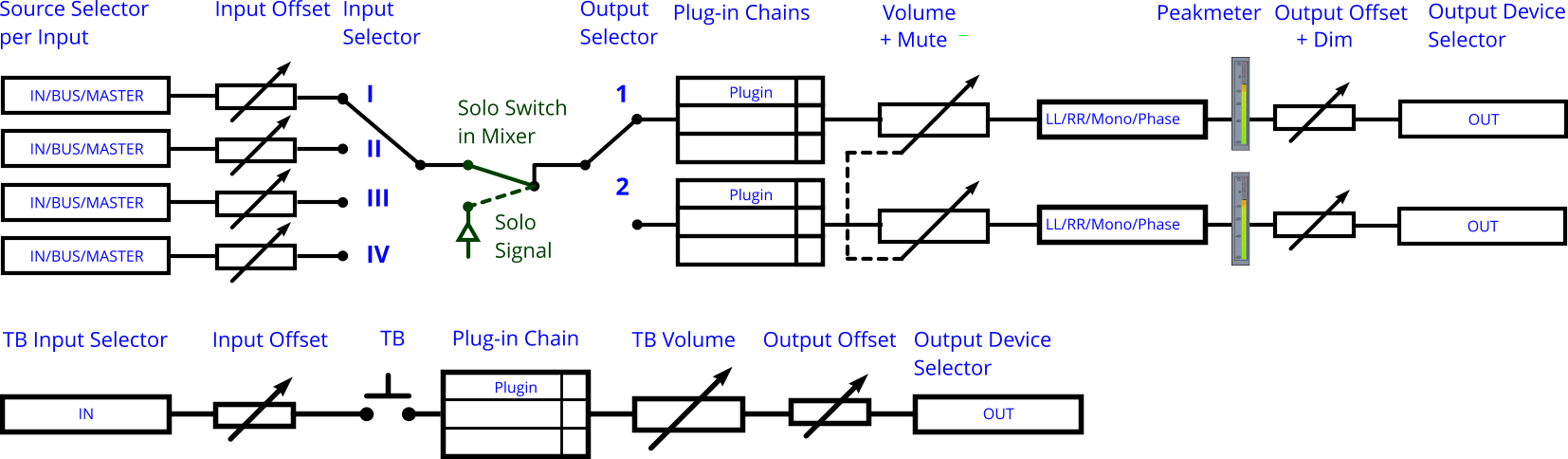

The Monitoring section provides a separate workflow for monitoring inputs, busses or masters. It is possible to switch between four different outputs, each with separate level settings and effect chains, for example to realize monitoring on different pairs of speakers (home system and studio monitors). There is also an independent talkback path for communication between the recording booth and studio.

Note: The Monitoring of the tracks is a different, independent function. This means monitoring the input signals of tracks before and during a recording. The monitoring section is generally used to control the audio output of the program.

The settings in the Monitoring Section apply across all projects, i.e. they are independent of the loaded project.

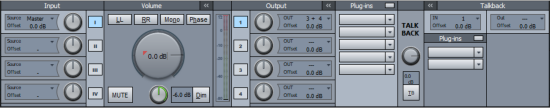

To display the Monitoring Section, go to the menu View > Monitoring Section or use the keyboard shortcut Ctrl + Shift + S.

Monitoring via separate monitor buses is only available when using the hybrid engine.

Input

Select Source: Default source is the Master, but you can also select any input pair or (stereo) bus as input source.When you select a surround master, you can open the downmix matrix in the menu to create a stereo downmix if a stereo output is set under Output.

When using a separate monitor bus, you can use Solo on Monitoring section to limit soloing to monitor output.

Sources selected here that are not available in the current project are shown in red.

Input Offset: Here you can adjust the level of the input signal independent of the selected output.

Switch Source: You can switch between 4 different sources.

If the master or a bus has been selected as the input, and their outputs are routed to the same output device as a monitoring section output, the signal will not be played back via both paths.

Volume/Output/Plugins

	Output selection: A separate output device can be set for each output. Settings in the ranges Volume (except the large knob for the global volume) and Plug-ins apply separately to the respective output. To display the settings in these areas for the respective output, activate the corresponding field below Output. Use the buttons 1...4 to activate the according output.
	Output level offset: The controls can be used to trim the monitor output level per output by setting an offset to the global monitor level.
	Device selection: Click the arrow to select the device for the output. The device for output 1 corresponds to the device that can be set under Monitoring in the mixer. If you deactivate the Exclusive option in the menu, other outputs can be activated independently of this output. You can also mark an output as Headphone. For headphone outputs, volume control is only through the offset control, independent of the global monitor level. This state is indicated by !! behind the dB display in the large knob.
	The plug-ins panel can be hidden with this button.
	Plug-in slots: The plug-in slots work like those in the mixer, track or object editor. A left click on an empty slot opens the Plug-in Browser, a left click on a loaded plug-in deactivates the plug-in, a right click opens the plug-in window. You can even load more than two plug-ins, but only the first two are displayed in the slots. The others can be reached via the FX routing dialog.
	Use the arrow to open the plug-in menu.
	A left click on this button deactivates the entire plug-in chain, a right click opens the FX routing dialog.
	The Peak meter shows the level behind the large volume control, but before the output offset.
	Volume control: Here you set the global monitoring volume. The value corresponds to the setting Monitor in the mixer at the bottom right.
	LL, RR, Mono: Use these buttons to adjust the mono stereo signal distribution. With LL the left input signal is reproduced on both output channels, with RR the right signal. Mono sums right and left to a mono signal, which is then also reproduced on both output channels.
	Phase: Inverts the phase of the right input signal to compensate for possible phase shifts.
	Mute: Mute switch.
	Dim: A click on the button reduces the volume by the amount set on the knob.

Talkback

With the talkback function, you can set up an additional communication path between the recording booth and mixing console.

		Input/Output: Here you define the input and output device for the talkback.
		Plug-ins: There are also plug-in slots for the talkback.
		Activate talkback
		Talkback Volume

Keyboard shortcuts for the monitoring window

To be able to execute the most important monitoring functions quickly without mouse clicks, there are some keyboard shortcuts especially for the monitoring section. These only apply when the monitoring window is open and focused. So you must have clicked in the window at least once after opening it.

For talkback, you can define a global keyboard shortcut in the Program Preferences in the section Keyboard/Menu/Mouse under Special Keys that also works independently of the focus of the monitoring window.

Alt + 1..4	Select Input 1-4 These keyboard shortcuts are global.	H	Invert phase
1, 2	Select Output 1 or 2	B	Open Plug-in browser (Monitor)
Alt + M, 0	Mute	Shift + B	Open Plug-in browser (Talkback)
D	Dim	P	Plug-ins on/off (Monitor)
L	LL (Input L to Output LR)	Shift + P	Plug-ins on/off (Talkback)
R	RR (Input R to Output LR)	T	Talkback (momentary)
N	Mono (Input L+R to Output LR)	Shift + T	Talkback on/off
